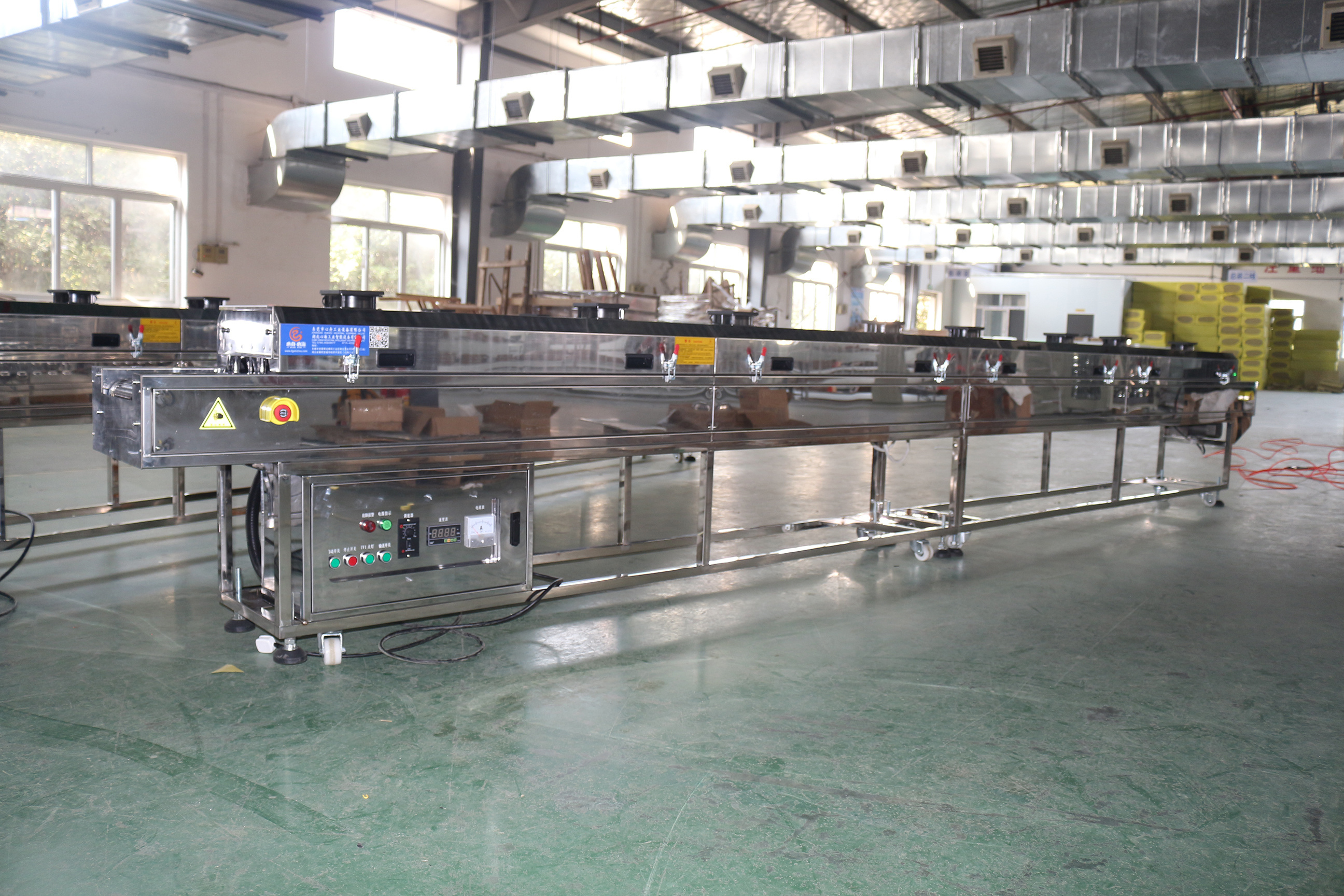

UVA-4024 conveying UV tunnel sterilizer
Published:
2023-07-27
Power supply: AC220V 1φ 50HZ 2kW
Size:
1. Lamp irradiation height 100mm;
2. Feed section length 300mm, UV section length 7000mm, discharge section length 300mm;
3. Total length 7600mm, total width 450mm, total height 1500±50mm
UV system lights: 35 40W lamps, 20 upper layers, 15 lower layers, the length is 1.25 meters, 30mw/cm, the luminous length is 1200mm, the wavelength is 254um, the lamp is installed horizontally in the transmission network, and the upper and lower sides are illuminated.
Cooling mode: Axial flow cooling fan is configured to reduce the temperature in the UV room.
