Class A Oven, Solvent Venting Oven, Explosion Proof Oven
Category:
Key Word:
Explosion Proof Oven
Solvent Venting Oven
Product Details
This explosion proof oven is specialized equipment designed for drying industrial products that produce flammable and combustible gases during the high temperature drying process.
The advantage of this explosion proof oven lies in its large circulation and exhaust gas volume. This explosion proof oven is equipped with an explosion proof device and a window on the rear. Besides, different explosion proof methods can be applied according to the needs of the operators.
First Method:
The explosion proof window will automatically open when the internal pressure is higher than air pressure.
Second Method:
Install one pressure measurement device in the oven. The explosion proof window will automatically open when the test pressure is higher than the set value.

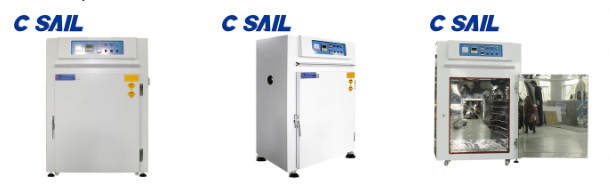

Display of different type of explosion proof oven.
Parameters of PSCO-4 explosion proof oven.
PSCO-4 Explosion-Proof Oven
| Model | PSCO-4 |
| Power | AC380V 3φ 50Hz 6kVA |
| Internal dimension | W700mm×D600mm×H1000mm |
| External dimension | W1030mm×D790mm×H1680mm |
| Temperature | Room Temperature～200℃ (Test in empty oven, take about 30minutes) |
| Room Temperature +25℃～300℃ (Test in empty oven, take about 40minutes) | |
| Temperature uniformity | ±1%℃ (Test in empty oven), equipped with overheat protection device |
| ±2% (Test in empty oven), equipped with overheat protection device | |
| Air flow system | Single side vertical blowing Adopts long axis motor |
| Single side horizontal air circulation. Adopts explosion proof design for industrial products that produces volatile gases. Adopts smooth air path structure and perfect air discharge structure to be secure and reliable. | |
| Security system | The malfunction of any electronic components will not produce sparks in the oven The explosion proof can be achieved to prevent burning due to product volatilization. Adopts high quality explosion proof door holder. Besides, explosion proof window is installed on the rear. |
| Configuration | 1: 3m power line 2: The diameter of the exhaust pipe is 150mm for high speed. 3: Equipped with one explosion proof window with the size of 300*300 mm. |
