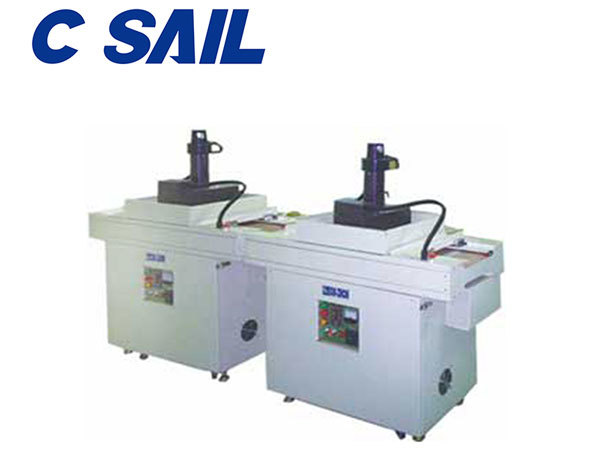

UV Curing Conveyor System
Other than LED light source, the conveying method is also important and C SAIL provides following conveying methods according to specific requirements.
Category:
Key Word:
UV Curing Conveyor System
Product Details
Other than LED light source, the conveying method is also important and C SAIL provides following conveying methods according to specific requirements.
Edge-Carry UV Curing Conveyor:
This conveying method is suitable for fast drying of electronic parts bonding, surface coating and printing and etc., because the processing products are transported along the rails and allows multi-direction curing on the products as well as excellent drying results.
Side-Cure Conveyor Systems:
Cure UV Adhesives and Coatings from the left, right, and/or top
Mesh Belt Conveyor Systems:
Mesh belt conveyor system is used in continuous mesh belt furnaces, this type of conveyor belt is able to function normally under extremely high-temperature environment with maximum of 1100°C. Continuous mesh belt furnaces could be used for various hot processing such as hardening, annealing, tempering, stress relieving and etc.
Other than the listed conveying methods, C SAIL also provides conveyor ovens & furnaces with different transportation methods such as flat belt style, chain conveyors, serpentine belt and etc.
The following shows some of our previously made custom industrial drying ovens/furnaces, please click the link below if you want to learn further more information.
| Model | UVA-201 | UVA-202 | UVA-301 | UVA-362 | UVA-364 | UVA-482 | UVA-503 | UVA-752 | UVA-842 |
| Power | 220V 1Ø 50Hz | 380V 3Ø 50Hz | |||||||
| Light power (kW) | 2kW×1PCS | 2kW×2PCS | 3kW×1PCS | 3.6kW×2PCS | 3.6kW×4PCS | 4.8kW×2PCS | 5kW×3PCS | 7.5kW×2PCS | 8.4kW×2PCS |
| LED illumination intensity(W/C㎡) | 80 | 80/120 | |||||||
| Cooling method | Forced air cooling | ||||||||
| Effective illumination width | 250 | 250 | 375 | 300 | 300 | 400 | 420 | 625 | 700 |
| Remark | Illumination intensity is between 120～200 W/CM2, customizing at your desire. | ||||||||
